Transmission Fluid, Explained.

Automatic transmission fluid (ATF) is a specialized oil that lubricates, cools, cleans, and transmits hydraulic pressure inside an automatic transmission. Unlike engine oil, it does double duty: it's both a lubricant and a hydraulic fluid that actuates the clutches and bands that change your gears.

• Hydraulic pressure — engages clutches and shifts gears.
• Lubrication — protects gears, bearings, and clutch packs.
• Cooling — carries heat away from friction surfaces.
• Cleaning — suspends wear particles so they don't score parts.

When fluid degrades, every one of those jobs suffers at once — which is why old fluid causes such a wide range of symptoms.

A practical rule of thumb is every 30,000–60,000 miles for normal driving, and as often as every 15,000 miles under severe service. Severe service includes towing, frequent stop-and-go traffic, mountain driving, and operating in extreme heat or cold — conditions most daily drivers actually experience.

For a deeper breakdown, read How often should you change transmission fluid?

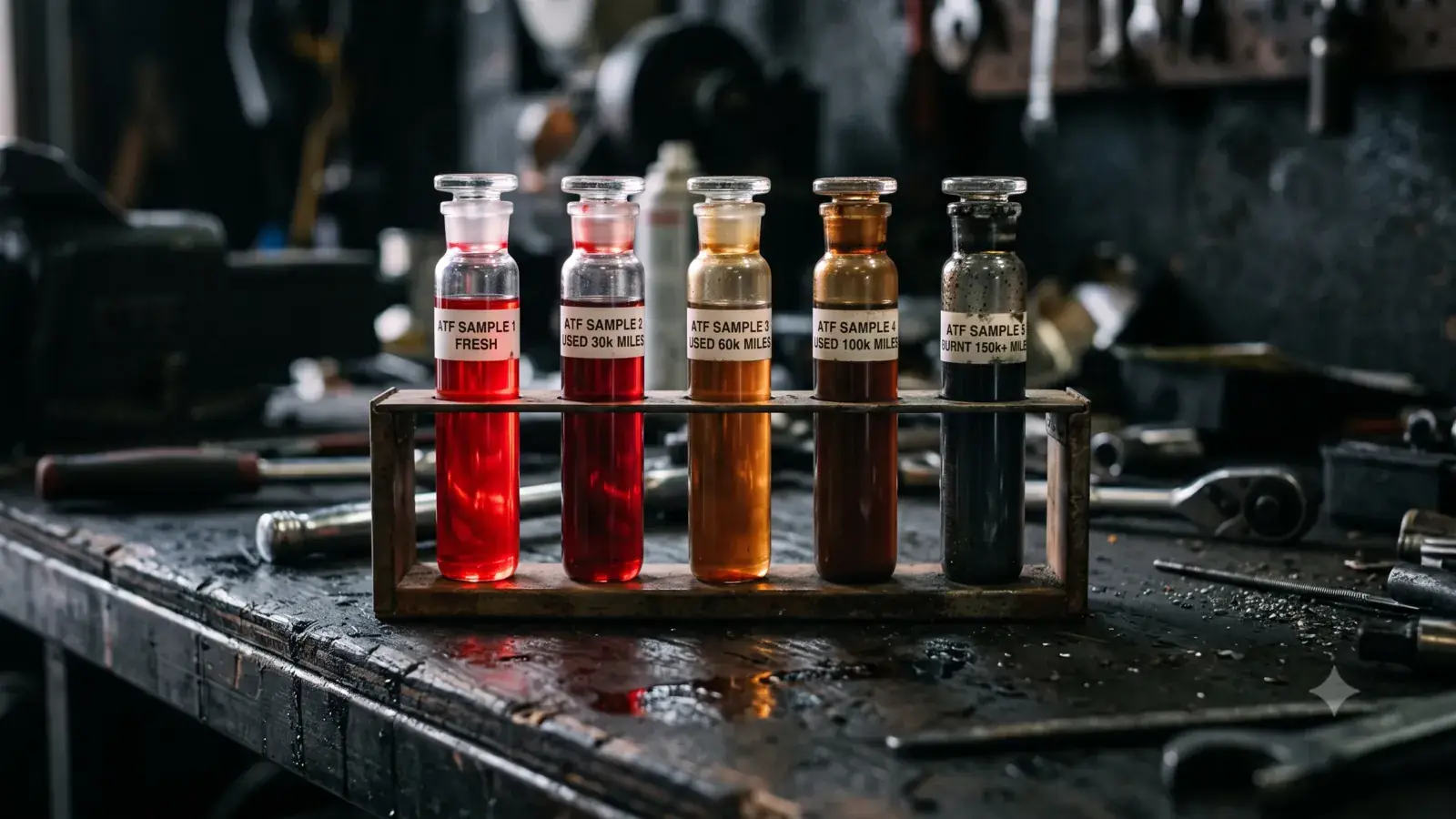

Wipe the dipstick on a white paper towel and compare:

• Bright red — healthy.
• Darker red / light brown — normal aging; plan a change.
• Dark brown — oxidized and overdue.
• Black + burnt smell — overheated; service immediately.
• Pink / milky — coolant contamination; stop driving.

Full reference: Transmission fluid color chart.

• Slipping — engine revs but the car doesn't accelerate as expected
• Delayed engagement — a pause before the car moves after shifting into D or R
• Hard or jerky shifts
• Burnt smell
• Red puddles under the car (see leak signs)
• Whining, humming, or grinding noises

Some of these are urgent and some can wait. The symptom checker sorts that out for you.

1. Park on level ground; most cars want the engine warm and running, in Park.
2. Find the transmission dipstick (if equipped — many newer cars are sealed).
3. Pull it, wipe it, reinsert fully, then pull again to read the level.
4. Check the level against the marks and the color against the chart above.

Sealed transmissions without a dipstick need a fluid check from below, at the fill plug — a job often best left to a mechanic.

Using the wrong fluid can damage a transmission. Common specifications include Dexron/Mercon, ATF+4, and a range of manufacturer-specific fluids (Toyota WS, Honda DW-1, and others). CVTs require dedicated CVT fluid, and dual-clutch (DCT) units have their own requirements. Always match the exact spec in your owner's manual.
